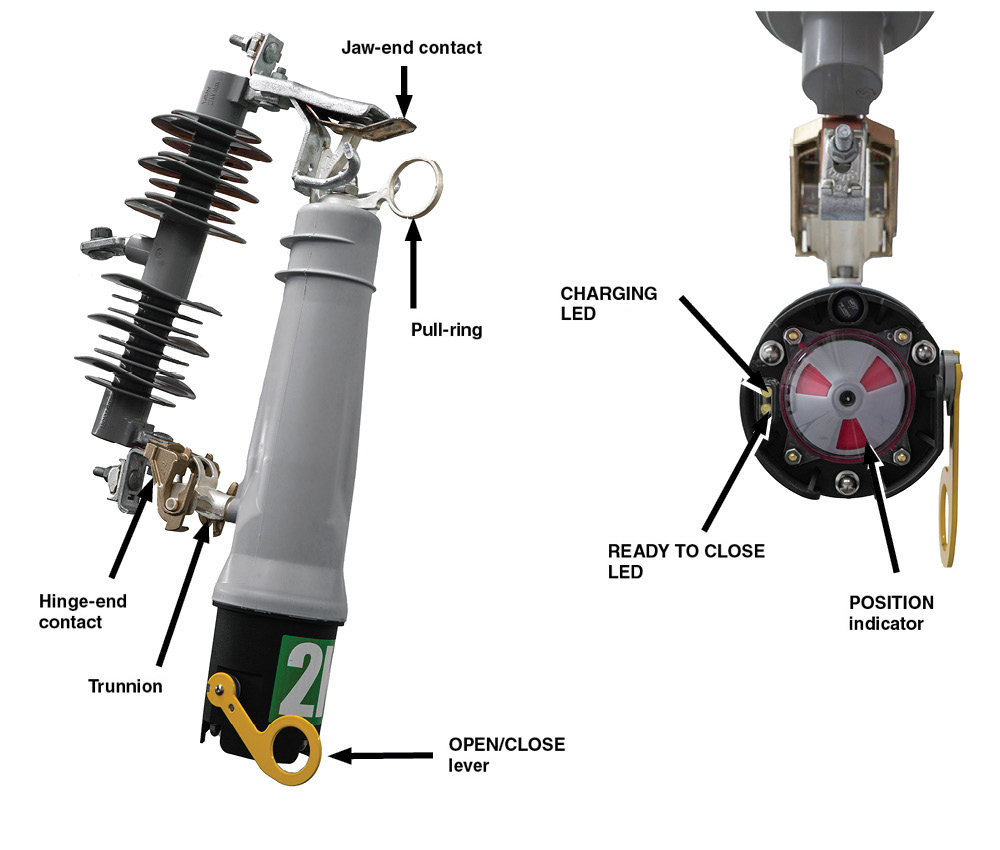

VacuFuse™ Self-Resetting Interrupter
Eliminate nuisance outages and unnecessary maintenance costs.
When fuses protecting overhead distribution transformers operate, 70% of the time they’re for nuisance outages where no other repair work is needed, requiring you to roll a truck unnecessarily. That equates to 70% of these maintenance costs wasted for issues that could have been altogether avoided.
VacuFuse Self-Resetting Interrupters bring fault-testing technology furthest toward the end of the grid than had previously been possible, providing you with advanced end-to-end lateral protection for the most vulnerable and difficult-to-reach locations on your system—and saving you needless maintenance expenses.
(On mobile, swipe left for remaining ratings information.)
|50/60-Hz Ratings||With Porcelain Insulator||With Polymer Insulator|
|kV||Amperes, RMS||Leakage Distance to Ground Minimum, Inches (mm)||Base Catalog Number||Leakage Distance to Ground Minimum, Inches (mm)||Base Catalog Number|
|System Class①||Nom.||Max||BIL||Cont.||Interr., Sym.|
|25||25||29||125||20||6 300||17 (432)||401232||19 (483)||401232-P|
① Applicable on 5-kV, 15-kV, and 25-kV systems when mounted in an S&C 125- or 150-kV BIL cutout mounting.
